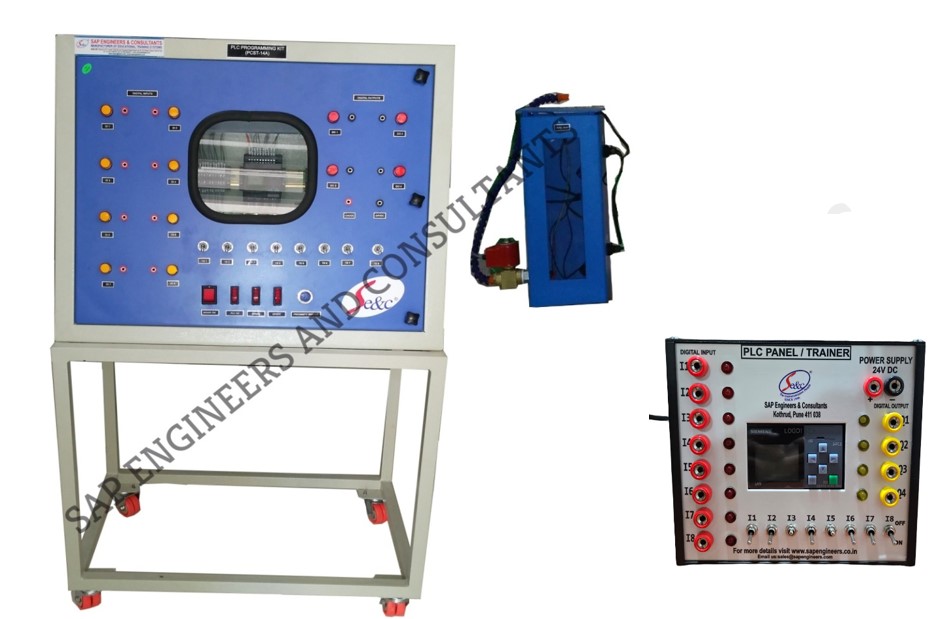

PLC Trainer Kit
PLC Programming Trainer
Download Catalogue
Item Code: PCST-14A AND PCST-14A_ECO
The PLC Programming Trainer Kit (PCST – 14A) gives an idea regarding the basics of Programmable Logic Controllers, Ladder Programming Techniques, input-output interfacing of PLC unit & real time usage & applications.
System Specifications
- Allen-bradley Pico / Micro 800 Series 2080-LC10-12AWA/ STD. EQUIVALENT.
- Micro810 Controller, 8IN 120/240VAC, 4RLY, AC PWR
- 8 Digital input / 4 Digital outputs.
- 24VDC, 1.5A Power source.4”X2”X2”.
- I/p- O/p LED indication on front panel.
- PC interface facility. PC-PLC interfacing cable.
- 2080-USBADAPTER: USB Adapter Plug for Micro810 12-pt only
- 2080-LCD: 1.5 LCD Display and Keypad, for Micro810 Only
- Necessary I/p-O/p simulating devices.
- SCADA SOFTWARE connectivity for PLC.(optional)
- Electrical control panel for simulation of digital inputs (for switches 8 no.& proximity sensors 2no, miniature level switch 1no.)
- Front panel for display of digital input /output status: Lamps (8no.), LED INDICATORS (4no.).
- PLC panel dimensions: 1.5Ft. X 1.5Ft. X 1.5Ft. With visible transparent front facia.
- High speed Frequency input.
- Inductive/ proximity limit switches (digital inputs), relay outputs (digital outputs)
- Optical sensor 1no. For position.
- Output compatibility to Solenoid valves, Electric motors as actuating elements in respective assorted modules.
- Water level tank with Miniature Level Switches(2nos.) and solenoid drain valve(1no.)
Product Features
Range Of Experiments
Services Required
System Dimensions
Approx. 2 Ft. (L) X 1.5 Ft. (W) X 4 Ft. (H)

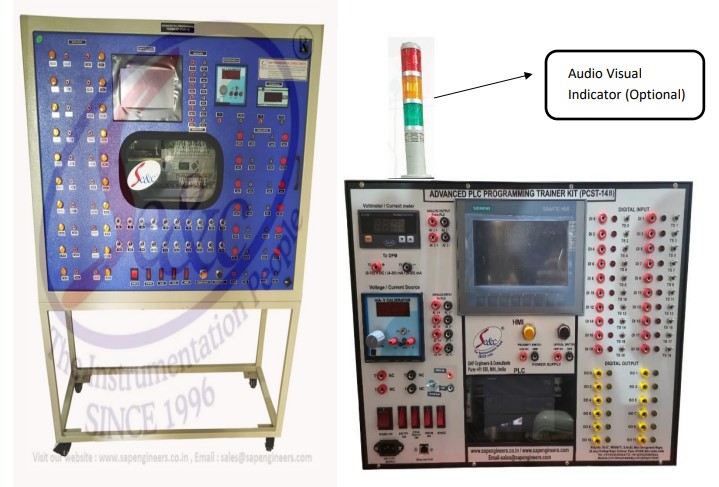

PLC Trainer Advanced
Item Code: PCST-14
PLC Programming Trainer Kit gives an idea regarding the basics of Programmable Logic Controllers & its applications.
System Specifications
- Make: Allen Bradley Micrologix 1400/ Siemens S7-1200/Eqvt.
- 20/16 Digital input / 12/10 Digital outputs.
- 4/2 Analogue input, 2 Analogue output
- 24VDC, 1.5A Power source.4” X 2” X 2”.
- I/P- O/P LED indication on front panel.
- PC interface facility. PC-PLC interfacing cable
- Necessary I/p-O/p simulating devices.
- Ladder diagram programming on PC.RS LOGIX 500 STARTER/TIA Portal.
- SCADA SOFTWARE connectivity for PLC.(optional)
- Electrical control panel for simulation of digital inputs (switches 4 no.& proximity sensors 2no, miniature level switch 1no.)
- Front panel for display of digital output status: Lamps (2no.), LED INDICATORS (4no.), small AC electric motor(1no.), solenoid valve 1no.
- PLC panel dimensions: 1.5Ft. X 1.5Ft. X 1.5Ft. With visible transparent front facia.
- High speed Frequency input for optical encoder module (Optional).
- High speed PWM output for Stepper motor module 42SH33-4AM (optional).
- Level measurement (CPT) using PLC with water level control module. (Optional).
- Inductive/ proximity limit switches (digital inputs) MFPS_Q12 for Water level, position Sensing relay outputs (digital outputs) in lift simulator & bottle filling plant module (Motor: ACM60, 10W, 230VAC.)
- Optical sensor 1no. for position.
- Output compatibility to Solenoid valves, Electric motors as actuating elements in respective assorted modules.
PLC Application Modules
Item Code: PCST14
Application / Working Modules of PLC, which are optionally hooked up with PLC Programming Trainer Kit (PCS – 14) give an idea regarding the basics of Programmable Logic Controllers & its applications.
System Specifications
- PLC : Micrologix 1200: 1762-L24 BXB / Micrologix 1400.
- 14 Digital input / 10 Digital outputs.
- 14 D.I./ 10 D.O. (M.L. 1200) / 20 D.I./ 12 D.O. (M.L. 1400)
- Communication Port : RS 232/ RS 485 / Ethernet
- 2 Analogue input/2 Analogue output 1762-1f20f2.
- 24VDC, 1.5A Power source.4” X 2” X 2”.
- I/P- O/P LED indication on front panel.
- PC interface facility. PC-PLC interfacing cable1761-CBL-PM02
- Necessary I/p-O/p simulating devices.
- Ladder diagram programming on PC.RS LOGIX 500 STARTER-9324RLM0100ENE.
- SCADA SOFTWARE connectivity for PLC.(optional)
- Electrical control panel for simulation of digital inputs (switches 4 no.& proximity sensors 2no, miniature level switch 1no.)
- Front panel for display of digital output status: Lamps (2no.), LED INDICATORS (4no.),small AC electric motor(1no.), solenoid valve 1no.
- PLC panel dimensions: 1.5Ft. X 1.5Ft. X 1.5Ft. With visible transparent front facia.
- High speed Frequency input for optical encoder module J260-58-AN-R-HVLD-360-V3-10-1-S-EG. (Optional).
- High speed PWM output for Stepper motor module 42SH33-4AM (optional).
- Level measurement (CPT) using PLC with water level control module. (Optional).
- Inductive/ proximity limit switches (digital inputs) MFPS_Q12 for Water level, position Sensing relay outputs (digital outputs) in lift simulator & bottle filling plant module. (Motor: ACM60, 10W, 230VAC.)
- Optical sensor 1no. for position.
- Output compatibility to Solenoid valves, Electric motors as actuating elements in respective assorted modules.
Product Features
- Compact Ergonomic Design.
- User Friendly, Self Explanatory Systems.
- Enhanced Electrical Safety Considerations.
- Training Manuals & mimic Charts for Operation Ease.
- I/P-O/P LED indication on front panel.
- PC interface facility: PC-PLC CABLE (Optional).
- Necessary I/P- O/P simulating devices.
- Ladder diagram programming facility on PC.
- Electrical control panel for simulation of digital inputs.
- Front panel for display of digital output status.
- PLC with 24 DI/DO Configurations & PC-PLC communication cable (Optional), standard Program.
PLC BASED SCADA SYSTEM TRAINER
Item Code: SAP-89
The PLC BASED SCADA SYSTEM TRAINER (PRODUCT CODE: SAP-89) outlines the principle of Supervisory Control & Data Acquisition (SCADA) used in Industrial Environment. The Static Application Panels provide an idea of different Process Plants. The Static Application Panels (SAPs) are mounted on M S Powder coated Frame and can be arranged in sequence as per the requirement. The SCADA Application software & an interfacing package, PLC-Controller based data logging facility give the overall idea regarding its application.
Product Features
- Compact Ergonomic Design.
- User Friendly, Self Explanatory Systems.
- Leak proof safety Measures, sturdy piping.
- Enhanced Electrical Safety Considerations.
- Training Manuals & mimic Charts for Operation Ease.
- System Frame with Caster Wheel Arrangement for ease in movement.
- M.S. powder coated cubical plant with standard Instrument Mountings.
- Inbuilt safety Measures to avoid improper usage.
Service Required
PLC PROGRAMMING TRAINER KIT
Item Code: PCST-14A-I
The Advanced PLC Programming Trainer Kit (PCST–14A-I) gives an idea regarding the basics of Programmable Logic Controllers & its applications.
System Specifications
Product Features
- Compact Ergonomic Design.
- User Friendly, Self Explanatory Systems.
- Robust Construction.
- Enhanced Electrical Safety Considerations.
- Self-explanatory instruction manuals, copy of S/W are provided.
- Inbuilt Safety Measures to avoid improper usage.
- Computer Interface (Optional).
- Caster wheel mounted movable frame.
